Brand Name : Hwatek
Model Number : NOUL
Certification : ISO9001, UL, CCC, RoHS
Place of Origin : China
MOQ : 305m,610m or as Request
Price : $0.5-1
Payment Terms : T/T
Supply Ability : 30KM/Day
Delivery Time : 5-8 Weeks
Packaging Details : Rolled in Reels, Packed in Pallets.
Material Shape : Round Wire
Color : Optional
Transport Package : Rolled in Reels, Packed in Pallets.
Typ : Insulated
HS Code : 8544492100
| ITEM | 3C×18AWG | ||||
| CONDUCTOR | Material | Bare copper stranded | |||
| Size | 16/0.254mm | ||||
| O.D.(Ref) | 1.17mm | ||||
| INSULATION | Material | TPE(Halogen free) | |||
| Min.average thickness | 0.25mm | ||||
| Min.thickness at any point | 0.20mm | ||||
| O.D. | 1.80±0.10mm | ||||
| COVERING | Material | TPE(Halogen free) | |||
| Min.average thickness | 0.25mm | ||||
| Min.thickness at any point | 0.20mm | ||||
| O.D. | 2.40±0.10mm | ||||
| CABLING | Assembly | 3C×18AWG | |||
| JACKET | Material | TPE(Halogen free) | |||
| Min.average thickness | 0.76mm | ||||
| Min.thickness at any point | 0.61mm | ||||
| O.D. | 6.90±0.25mm | ||||
| ELECTRICAL CHARACTERISTICS | PHYSICAL PROPERTIES | ||||
| Rated voltage:300V | Tensile strength: | ≥8.27MPa | |||
| Rated temperature:90ºC | Elongation: | ≥200% | |||
| Max. DC conductor resistance(20ºC):21.8Ω/km | Aged condition: | 121±2ºC×168h | |||
| Voltage withstand test:AC 2.0kV/1min | Percent of original tensile strength: | ≥75% | |||
| Percent of original elongation: | ≥75% | ||||
| Flame test:VW-1 | |||||



Shipping
FAQ
|
|

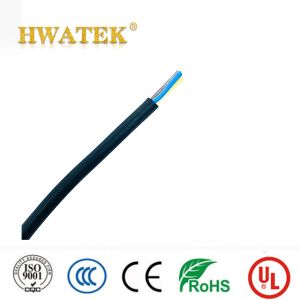

TPE Insulated Bare Copper Stranded Wire Cable 300V 18AWG Images |
